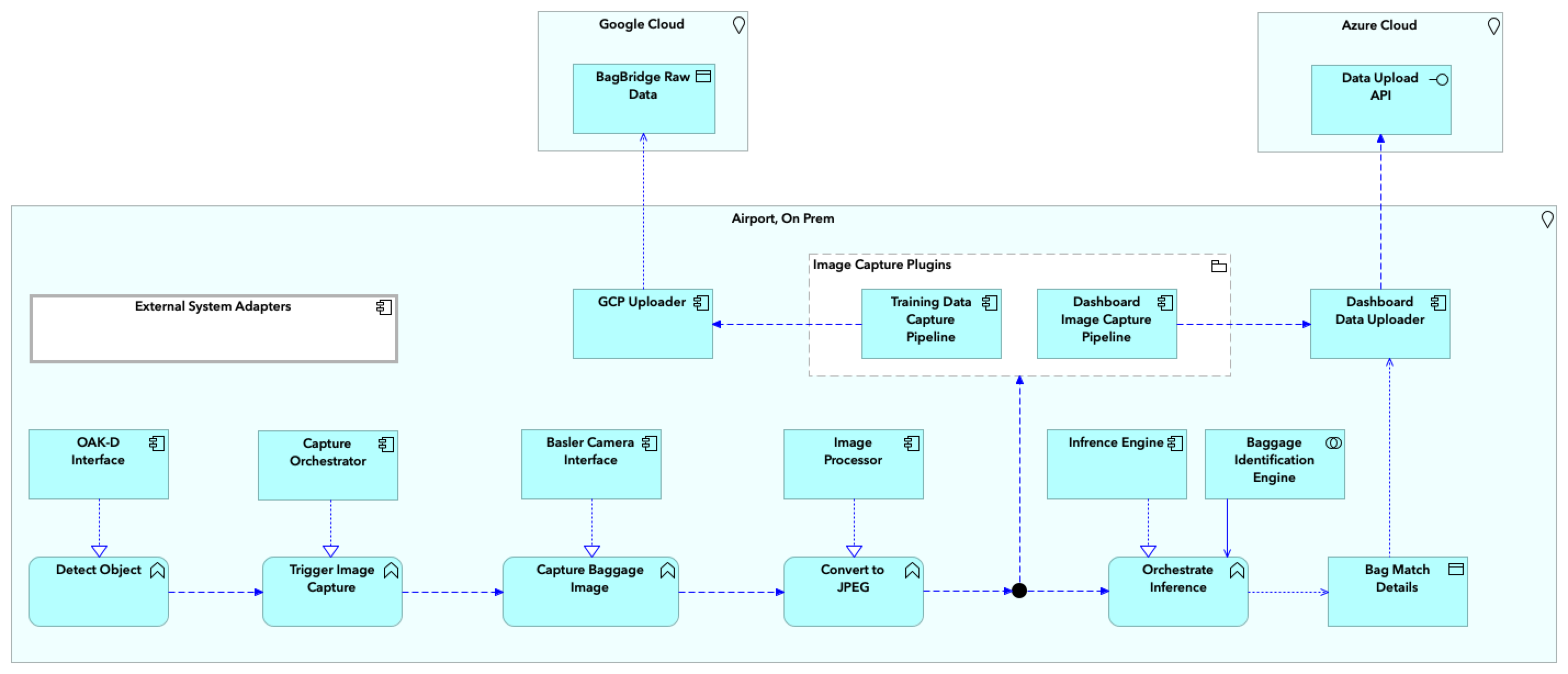

This view shows the architecture of the arch system that runs at the edge (airport).


Airport, On Prem
Image Processor
Image Capture Plugins
Training Data Capture Pipeline
Dashboard Image Capture Pipeline
Infrence Engine
Baggage Identification Engine
Bag Match Details
Capture Orchestrator
Dashboard Data Uploader
Trigger Image Capture
Convert to JPEG
Junction
OAK-D Interface
Basler Camera Interface
Orchestrate Inference
Detect Object
Capture Baggage Image
GCP Uploader
External System Adapters
Azure Cloud
Data Upload API
Google Cloud
BagBridge Raw Data


		Airport, On Prem	Image Processor
		Airport, On Prem	Image Capture Plugins
		Airport, On Prem	Infrence Engine
		Airport, On Prem	Baggage Identification Engine
		Airport, On Prem	Bag Match Details
		Airport, On Prem	Capture Orchestrator
		Airport, On Prem	Dashboard Data Uploader
		Airport, On Prem	Trigger Image Capture
		Airport, On Prem	Convert to JPEG
		Airport, On Prem	OAK-D Interface
		Airport, On Prem	Basler Camera Interface
		Airport, On Prem	Orchestrate Inference
		Airport, On Prem	Detect Object
		Airport, On Prem	Capture Baggage Image
		Airport, On Prem	GCP Uploader
		Airport, On Prem	External System Adapters
		Image Processor	Convert to JPEG
		Image Capture Plugins	Training Data Capture Pipeline
		Image Capture Plugins	Dashboard Image Capture Pipeline
		Training Data Capture Pipeline	GCP Uploader
		Dashboard Image Capture Pipeline	Dashboard Data Uploader
		Infrence Engine	Orchestrate Inference
		Baggage Identification Engine	Orchestrate Inference
		Capture Orchestrator	Trigger Image Capture
		Dashboard Data Uploader	Bag Match Details
		Dashboard Data Uploader	Data Upload API
		Trigger Image Capture	Capture Baggage Image
		Convert to JPEG	Junction
		Junction	Orchestrate Inference
		Junction	Image Capture Plugins
		OAK-D Interface	Detect Object
		Basler Camera Interface	Capture Baggage Image
		Orchestrate Inference	Bag Match Details
		Detect Object	Trigger Image Capture
		Capture Baggage Image	Convert to JPEG
		GCP Uploader	BagBridge Raw Data
		Azure Cloud	Data Upload API
		Google Cloud	BagBridge Raw Data
